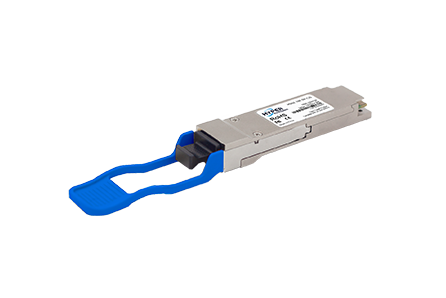

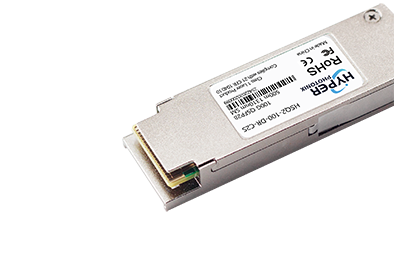

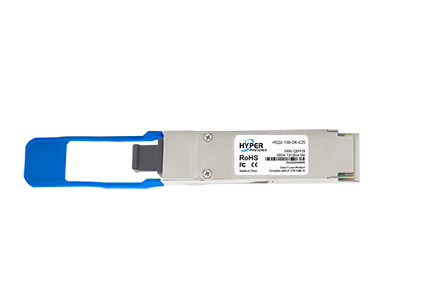

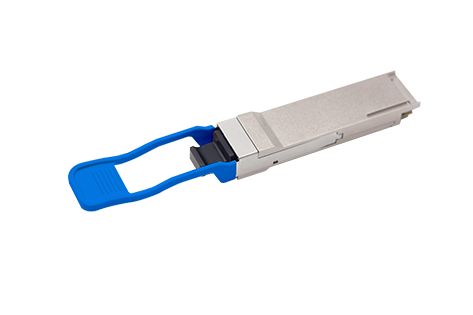

100GBASE-DR1 QSFP28 1310nm 500m DOM LC SMF Optical Transceiver Module

The 100Gbase DR incorporates one channel optical signal, on 1310nm center wavelength, operating at a 50Gbaud data rate. A DSP-based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signals. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and the optical interface is compliant with IEEE 802.3cd and 100G Lambda MSA with a Duplex LC connector. The module has a maximum power consumption of 3.5W.

TAG: 100G,Optical Transceiver,Data Center
Get a Quote
Download
Features
Typical Application
Specifications
Videos

Features

  • Optical Interface: 1x50GBaud (100Gb/s) PAM4

  • Supports RS (544, 514) FEC coder/decoder functions

  • Uncooled EML laser (1310nm) and PIN photo detector

  • 0°C to +70°C case operating temperature range

  • Supports 500m transmission with single mode fiber

  • 3.3V power supply and <=4.5W power consumption

  • Compliant with QSFP28 SFF-8665 MSA

  • IEEE 802.3/100G DR1 compliant

  • Digital diagnostic functions (via I2C)

  • Compliant with RoHS

  • Compliant with UL & TUV


Typical Application

  • 100Gb Ethernet

  • Datacenter


Specifications

Data Rate:100G (1x100Gb/s)
Supply voltage3.3V
Power consumption<3.5W
Wavelength1310nm
Connector Duplex LC
TransmitterVcsel
ReceiverEML
Case Temperature0℃ to 70℃ (32 to 158°F)
Reach500m on SMF
