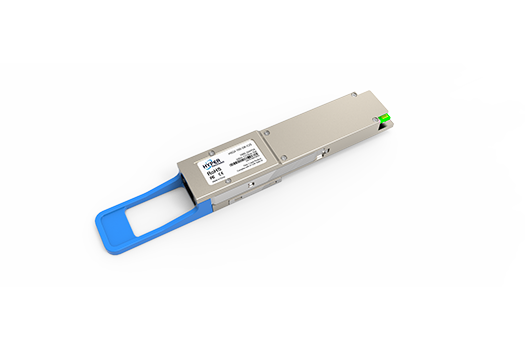

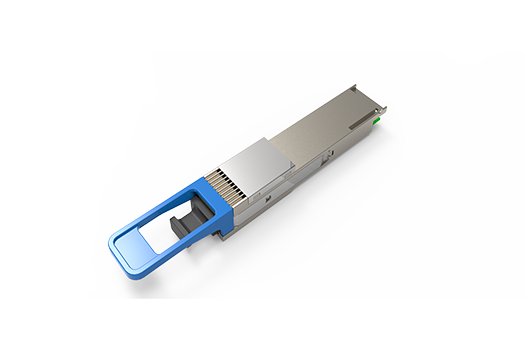

200G QSFP112 DR2 Pluggable Optical Transceiver

The Hyper Photonix HSQ4-200-DR-C2S transceiver is designed for 200G Ethernet and InfiniBand communication application links over 500m of single-mode fiber (SMF), and it is compliant with QSFP112 MSA, CMIS 5.1, IEEE 802.3df, and 802.3ck standards. The optical signal is transmitted over two parallel channels at a central wavelength of 1310nm. The module contains 2 parallel channels on the transmitter and receiver, each operating at 106.25Gbps. The optical interface is MTP/MPO-12 APC connector.
