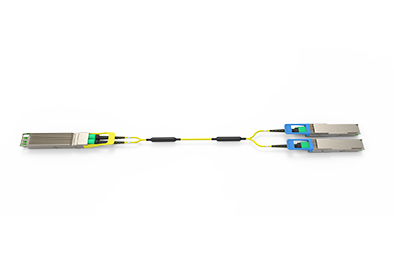

800G OSFP to 2x400G QSFP112 Breakout AOC

芯速联 HO6-800-2Q4-SXXX Breakout 有源光缆专为单模光纤（SMF）上的以太网和 InfiniBand 通信应用链路而设计，符合 QSFP112 MSA、OSFP MSA、CMIS 5.1 和 IEEE802.3ck 标准。HO6-800-2Q4-SXXX AOC 是一款高性能、高性价比的模块。该模块可实现 800G 至 2x400G 的突破性应用。内置的数字诊断监控（DDM）允许访问实时运行参数。

TAG: 800G, AOC, SIPH
Get a Quote
Download
Features
Typical Application
Specifications
Videos

Features

  • Compliant with OSFP MSA 5.0,QSFP112 MSA 2.1.1 and CMIS 5.1

  • 8x106.25Gbps (53.125GBd PAM4) electrical interface

  • Support 1m~100m Transmission with SMF

  • Power dissipation: ≤ 16W(800G OSFP End), ≤ 9W(400G QSFP112 End)

  • Operating case temperature: 0°C to 70°C

  • Compliant with IEEE802.3ck

  • Built-in digital diagnostic functions

  • 3.3V power supply voltage

  • RoHS compliant

Typical Application

  • 800G to 2x400G Breakout Ethernet

  • 800G to 2x400G Breakout InfiniBand NDR

Specifications

Data Rate850Gbps
Supply Voltage3.3V
Power Consumption

≤ 16W (800G OSFP End),

≤ 9W (400G QSFP112 End)
Wavelength1310nm
Case Temperature0°C to 70°C
Max Distance

XXXm

where XXX = up to 100m
