400G QSFP112 AOC

芯速联 HQ4-400-1Q4-SXXX 有源光缆专为单模光纤 (SMF) 上的 400G 以太网和 InfiniBand 通信应用链路而设计，符合 QSFP112 MSA、CMIS 5.1 和 IEEE802.3ck 标准。HQ4-400-1Q4-SXXX AOC 是一款高性能、高性价比的电缆。它在每个方向上集成了 4x106.25Gbps 的四个数据通道。内置的数字诊断监控（DDM）允许访问实时运行参数。

TAG: 400G, AOC, SIPH
Get a Quote
Download
Features
Typical Application
Specifications
Videos

Features

  • Compliant with QSFP112 MSA 2.1.1 and CMIS 5.1

  • 4x106.25Gbps (53.125GBd PAM4) electrical interface

  • Support 1m to 100m Transmission with SMF

  • Power dissipation ≤ 9W (per end)

  • Operating case temperature: 0°C to 70°C

  • Compliant with IEEE802.3ck

  • Built-in digital diagnostic functions

  • 3.3V power supply voltage

  • RoHS compliant

Typical Application

  • 400G Ethernet

  • Data center networks

  • InfiniBand NDR

Specifications

Part Number

HQ4-400-1Q4-SXXX

Data Rate

425Gbps

Supply Voltage

3.3V

Power Consumption

≤ 9W

Wavelength

1310nm

Case Temperature

0°C to 70°C

Lenth

XXXm

where XXX = up to 100m


Videos

Solutions

View More

Related Products

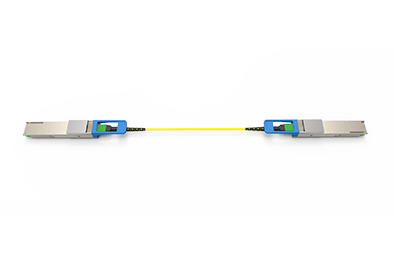

400G QSFP112 LPO AOC

View More

800G OSFP112 AOC

View More

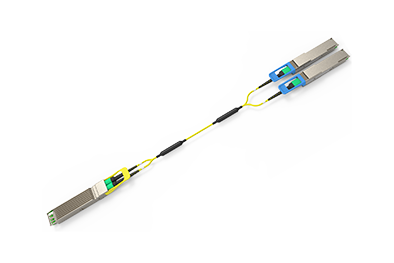

800G OSFP to 2x400G QSFP112 Breakout AOC
