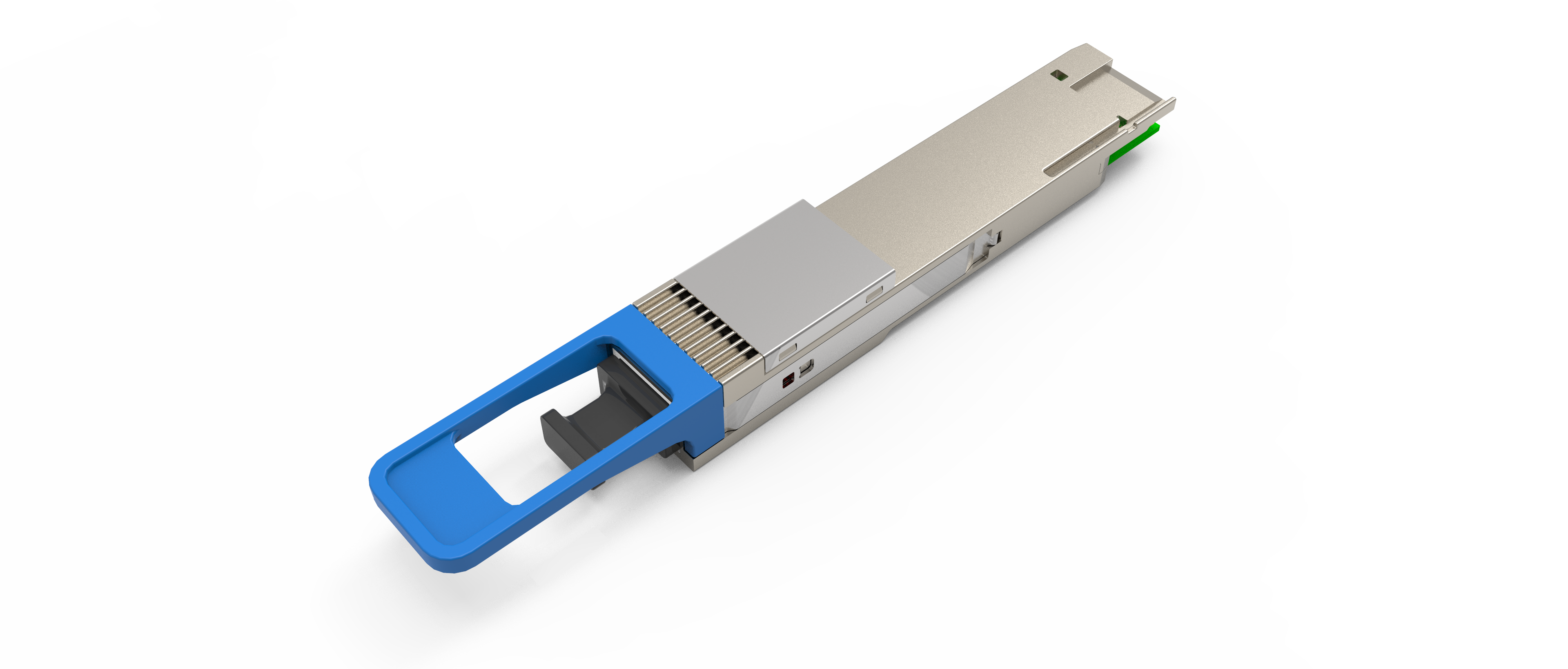

800GBASE-DR8 QSFP-DD PAM4 1310nm 500m DOM MTP/MPO-16 SMF Optical Transceiver Module

800GBASE-DR8 QSFP-DD transceiver module can be used for 800 Gigabit Ethernet connections over 500m of single-mode fiber. The module includes eight parallel channels with a central wavelength of 1310nm and the operating rate of each channel is 106.25Gbps.

TAG: 800G, Optical Transceiver, Data Center
Get a Quote
Download
Features
Typical Application
Specifications
Videos

Features

  • QSFP-DD800 MSA and CMIS 4.0 compliant

  • MPO-16 APC connector

  • 8x106.25Gbps (53.125GBd PAM4) electrical interface

  • 8x106.25Gbps (53.125GBd PAM4) optical interface

  • Up to 500m over SMF

  • Power dissipation ≤ 16W

  • Operating case temperature: 0°C to 70°C

  • IEEE 802.3cu and IEEE 802.3ck compliant

  • Built-in digital diagnostic functions

  • 3.3V power supply voltage

  • RoHS compliant


Typical Application

  • 800Gb Ethernet

  • Data center networks

Specifications

Data Rate:800G
Supply voltage3.3V
Power consumption<16W
Wavelength1310nm
TransmitterSiph
Case Temperature0℃ to 70℃ (32 to 158°F)
ReachUse SM fiber
