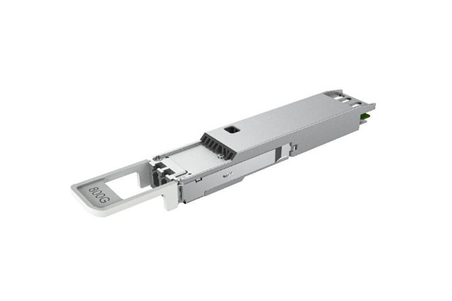

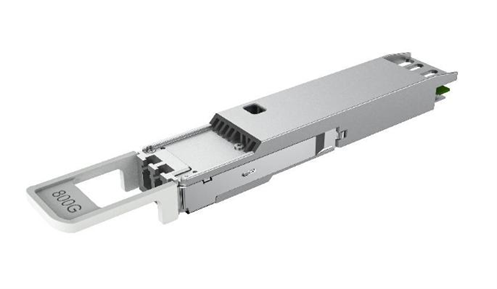

800G ZR+ HO OSFP Coherent Pluggable Optical Transceiver
The Hyper Photonix 800G ZR+ HO OSFP Coherent Transceiver is a high performance, high output power, cost effective pluggable DCO module compatible with various switches and routers for optical data communication applications. The module supports 800G Metro IP over DWDM applications without inline chromatic dispersion compensation.
The 800G ZR+ HO OSFP Coherent Transceiver is a C-Band tunable coherent optical module, combines high performance 5nm coherent DSP ASIC functionality with best in class ultra-narrow line-width tunable lasers, high speed modulators and high responsively coherent receivers to deliver high performance at 800G ZR+ PCS DP-16QAM modulation format. With EDFA and VOA inside the TX optical path, the module supports output optical power up to 0dBm and supports power configurable.
The 800G ZR+ HO OSFP coherent transceiver mechanical dimensions, connectors and footprint conform to OSFP MSA. The module is 22.58 mm x 116.4 mm x 13.0 mm in size and hot pluggable by 76-PIN PAD host connector. Digital diagnostics functions are available via an I2C interface as specified by the OSFP MSAand OIF CMIS IA. The module power supply voltage is +3.3 V and typical power consumption is 29W.
